Analog Azimuth

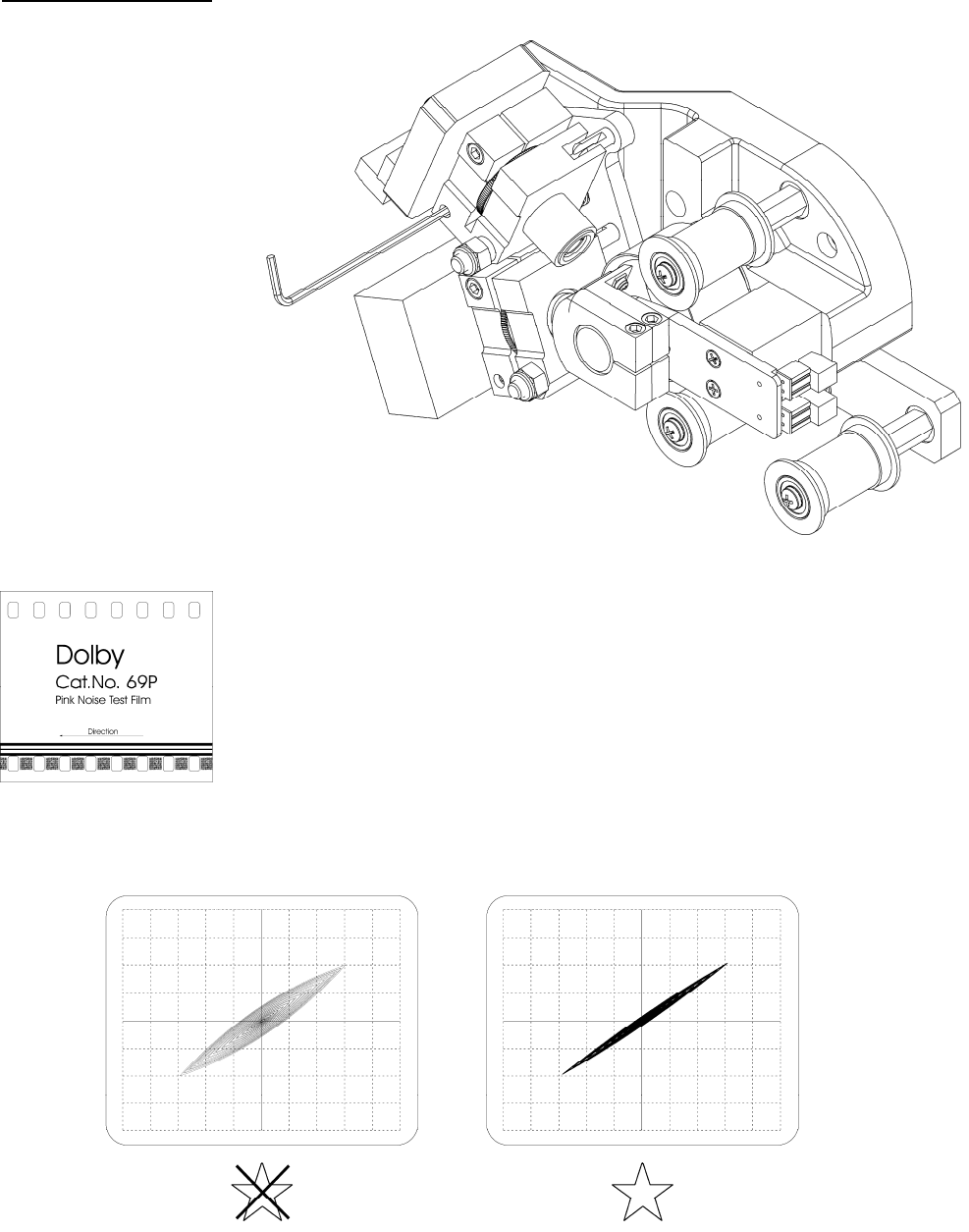

You may continue to run the Cat. No. 69P for this test. View with a dual trace

oscilloscope set to XY mode. Use a 5/32 Allen wrench to fine tune the reader

azimuth adjustment. An extremely narrow trace is the desired result.

A trace that "leans" the other direction indicates that the two channels are

wired in opposing phase. If this is the case. Correct and proceed.
